Alpha 40

Optic-electric RTK

12

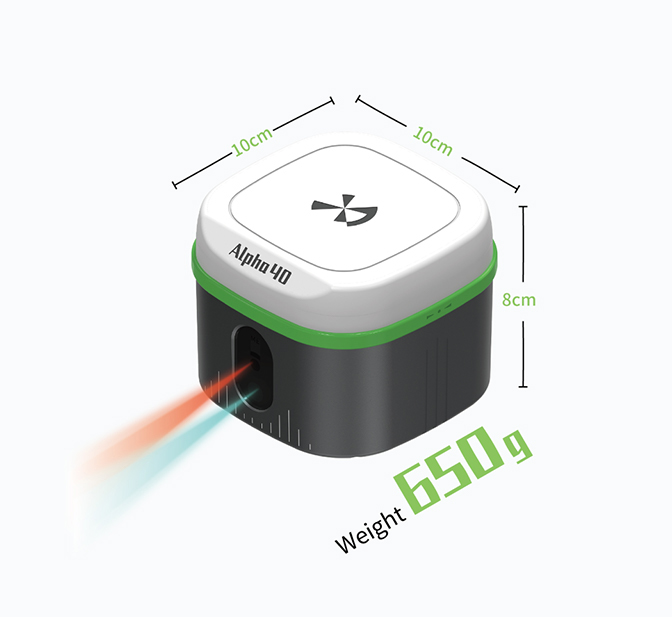

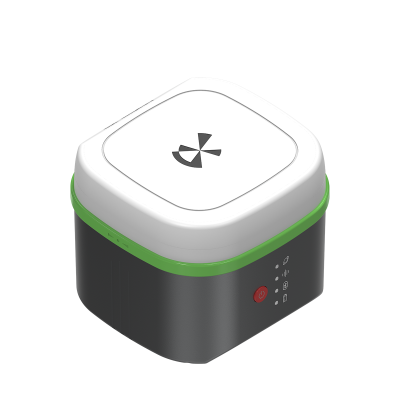

Alpha 40 is a lightweight optic-electric RTK, an intelligent platform designed for the future, with rich communication modes and interfaces for collaboration with intelligent terminals, optoelectronic products, and unmanned systems.

Calibration-free

Alpha 40 integrates GNSS, IMU and magnetometer data, and adds temperature compensation and other algorithms to achieve real-time output of accurate tilt measurement data at high tilt angles and high dynamic postures with a 60 tilt angle and an accuracy of 2cm. No initialization is required, just take a few steps to enter inertial navigation mode.

Optic-electric Measurement

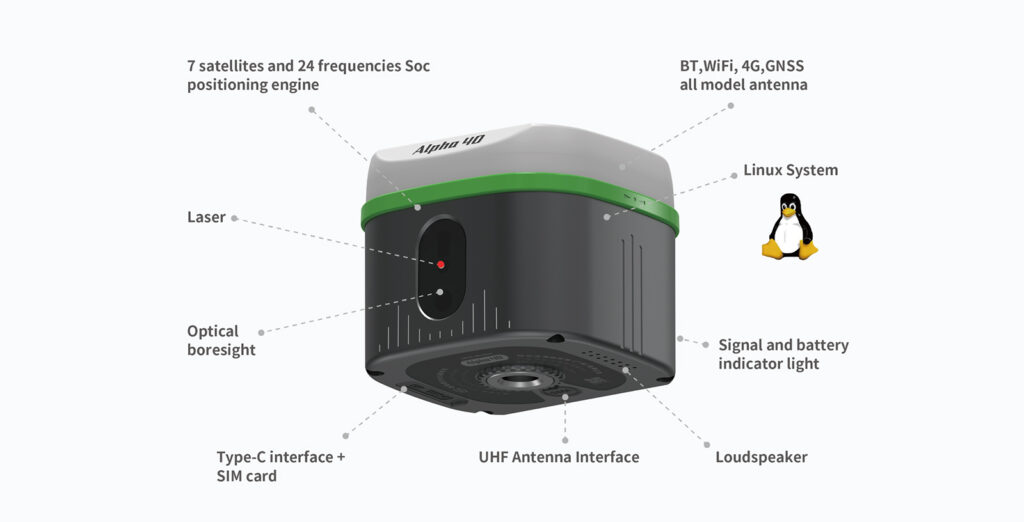

With the advanced optic-electric technologies from Alpha Surveying, laser is combined with the RTK to provide 360 measurement without blind spots, 30 meters measuring radius with accuracy of millimeter. With high speed calibration-free IMU, unlike ordinary laser RTK, Alpha 40 can perform non-contact measurement of target points through optical system calibration when the laser point is invisible under strong light.
